RM 20

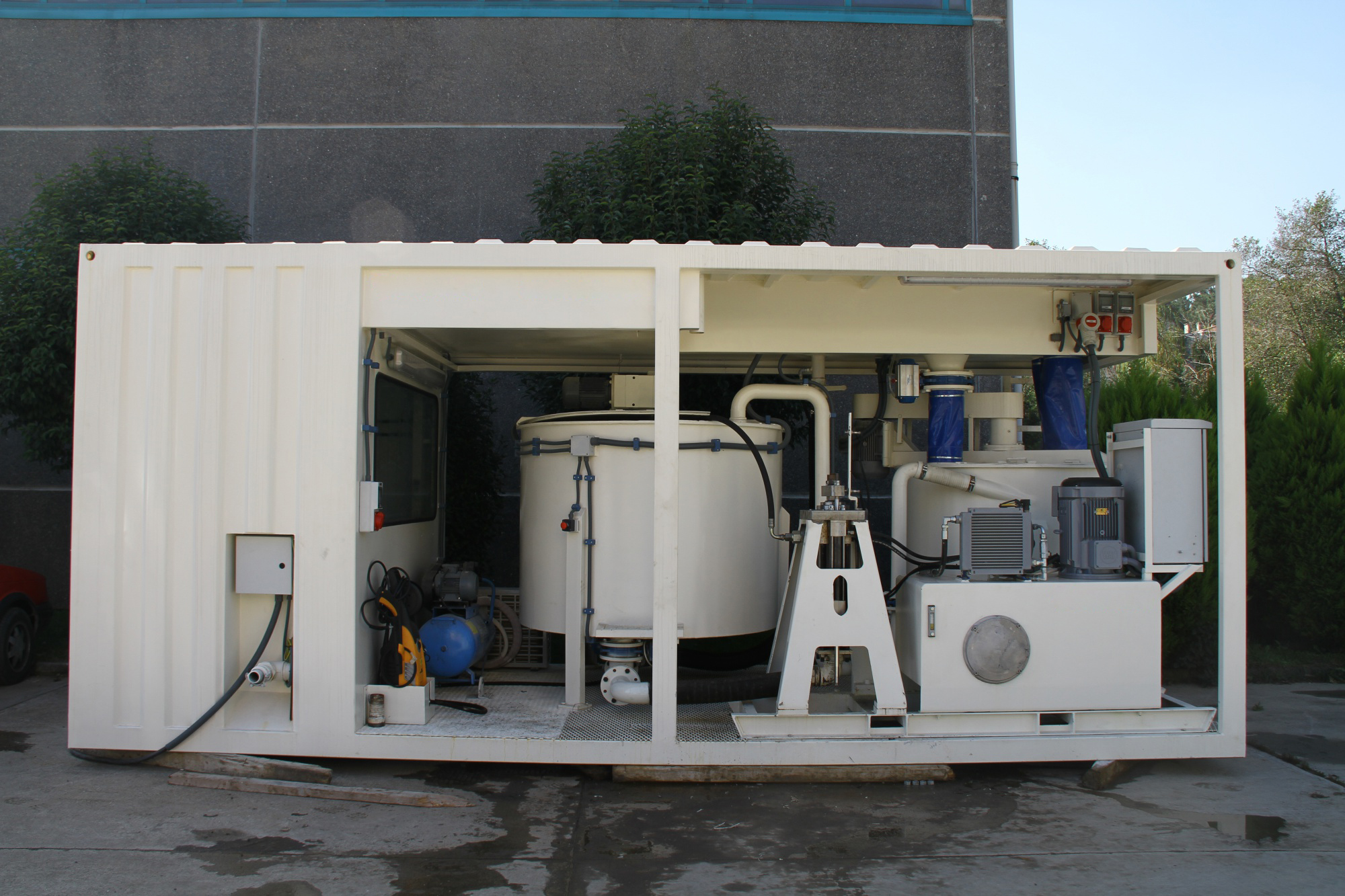

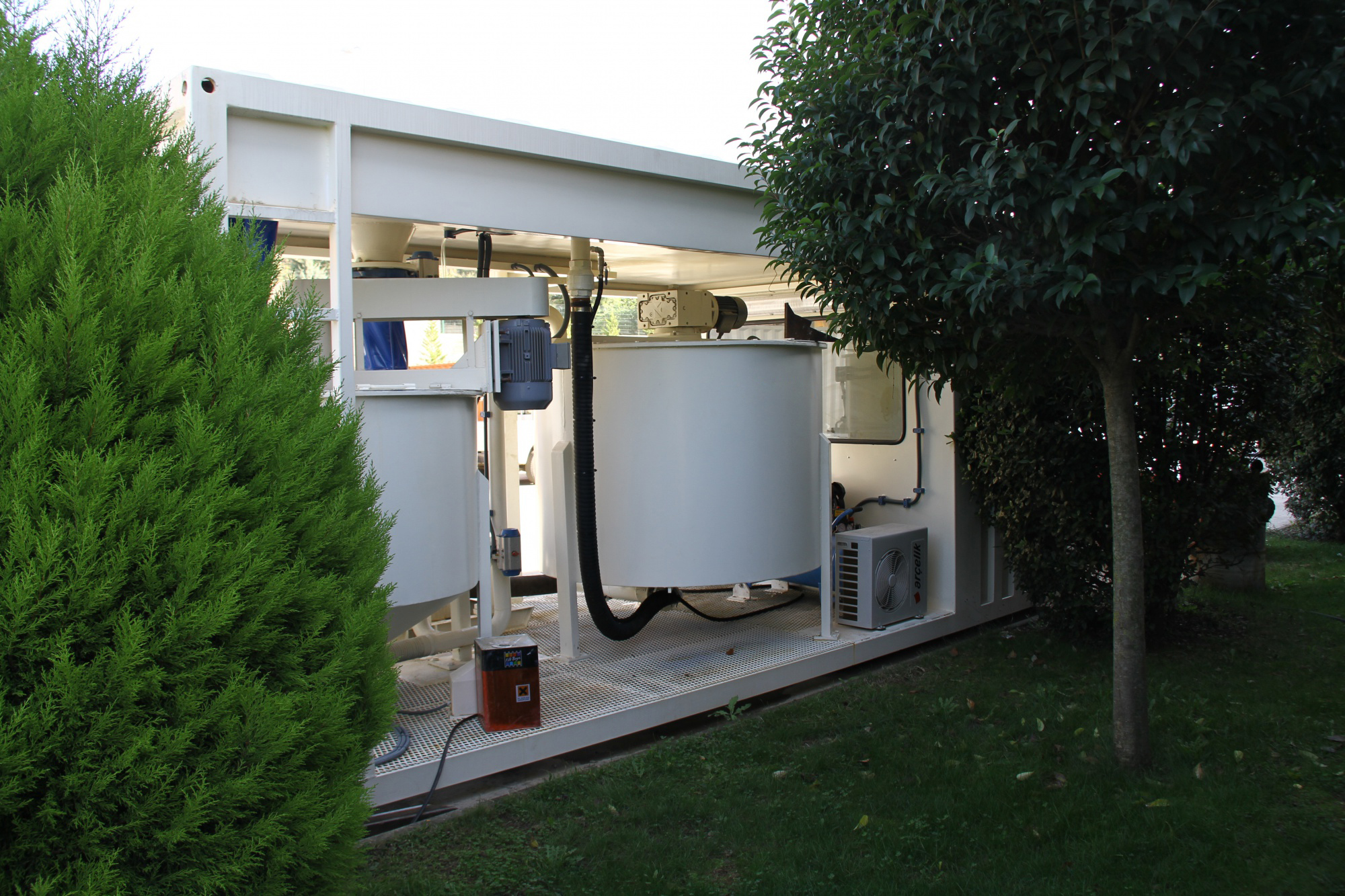

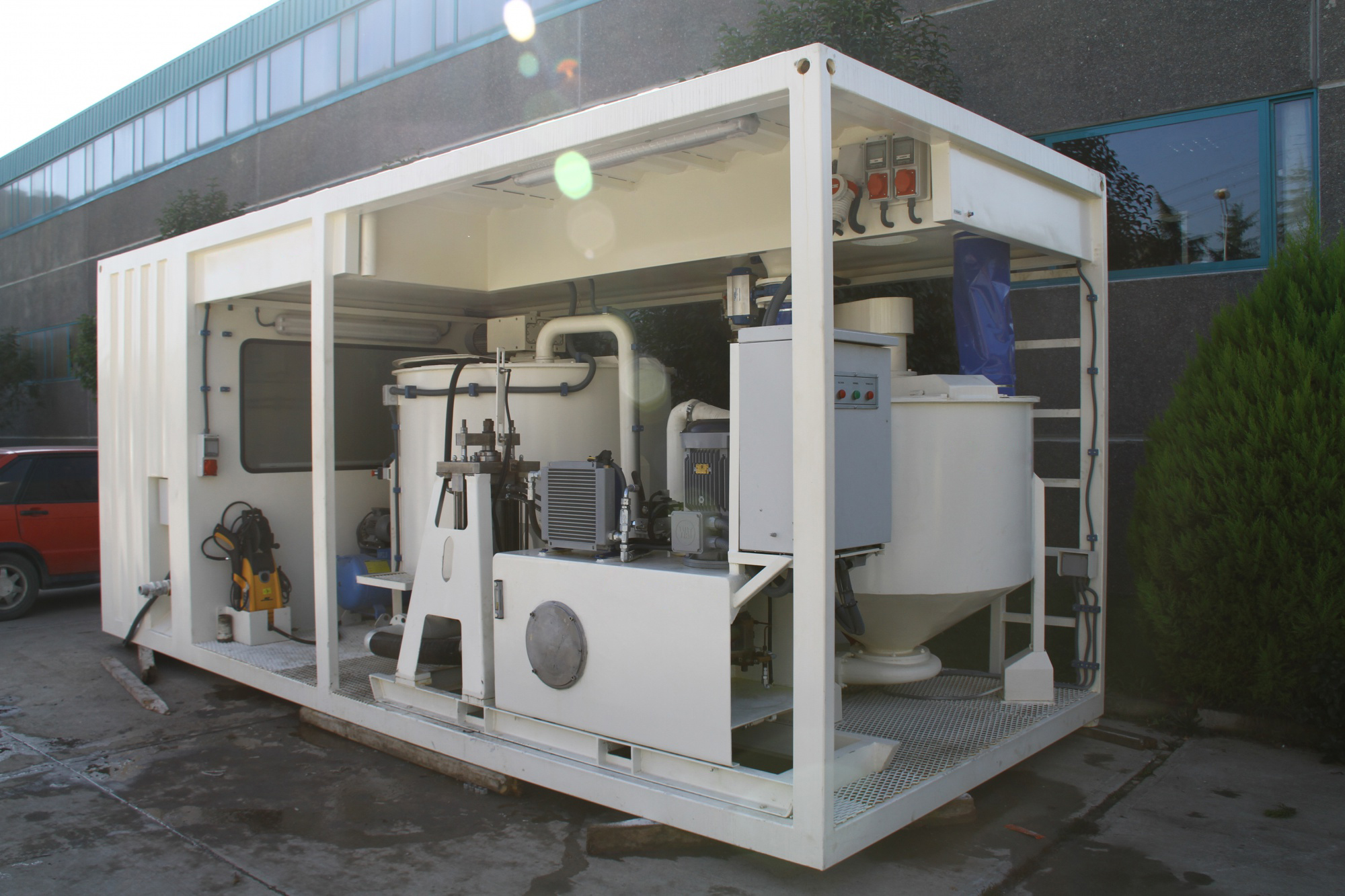

Jet Grout Plant

ADVANTAGES

  • Jet Grout Plants range includes different sizes equipment with production capability up to 30 m³/h.
  • The continuous mass transfer between the two zones ensures maximum possible homogeneity of the mixture.
  • Absolutely minimal sedimentation of the mixture.
  • High mixing capacity due to short mixing time.
  • Lowest possible use of raw materials.
  • Operator cabin with full automatic control panel board.

APPLICATIONS

  • Anchor injection
  • Jet grouting
  • Drilling
  • Concreting
  • Cavity filling
  • Bottom injection
  • Tunnel applications
  • Dam applications
Mixer Tank Capacitym31400
Agitator Tank Capacitylt2750
Water Tank Capacitylt3000
PowerkW40
Mixing Capacitym3/h20
Dimensionsmm6000x2400x2600
Weightkg6000
