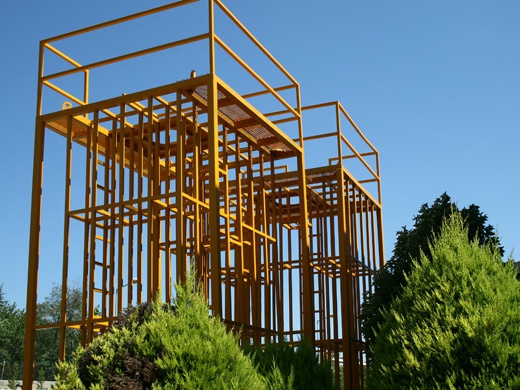

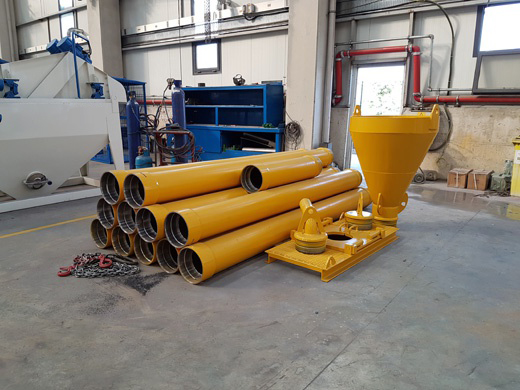

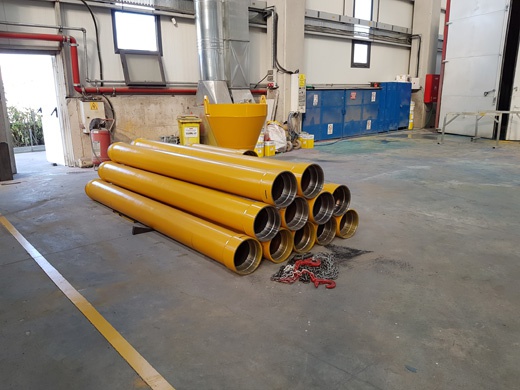

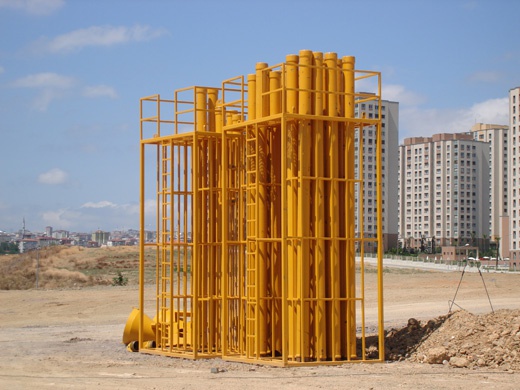

Tremie Pipes and Equipments They are connectable pipes used to transfer concrete from the buckets and hopper to the bottom of the pile. They are easy to connect and disconnect. Products in various lengths and diameters can be provided as customer requirements. The equipments of tremie set which we can manufacture are as follows: Tremie Pipe, Tremie Platforms, Suspension Jig, Hopper, Holder, Pipe Cleaner and so on.
| Pipe Diameter | mm | 195 | 219 | 245 | 275 |
| Wall Thickness | mm | 8 | 8 | 8 | 8 |
| Socket Diameter | mm | 225 | 255 | 272 | 310 |
| Length of Tremie | mm | 1000-6000 | 1000-6000 | 1000-6000 | 1000-6000 |
| Weight of Tremie (1M) | kg | 40 | 80 | 120 | 240 |
| Weight of Tremie (2M) | kg | 46 | 92 | 138 | 276 |
| Weight of Tremie (3M) | kg | 52 | 104 | 156 | 312 |
| Weight of Tremie (6M) | kg | 58 | 116 | 174 | 348 |
| Weight of Hopper | kg | 245 | 250 | 255 | 260 |
