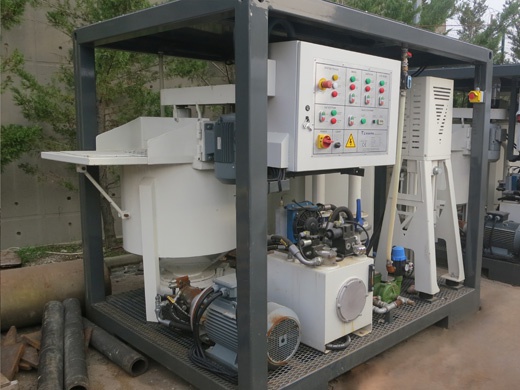

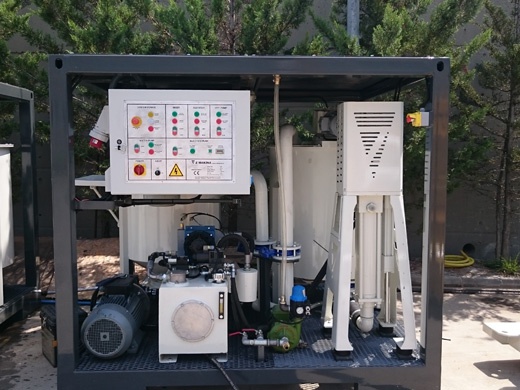

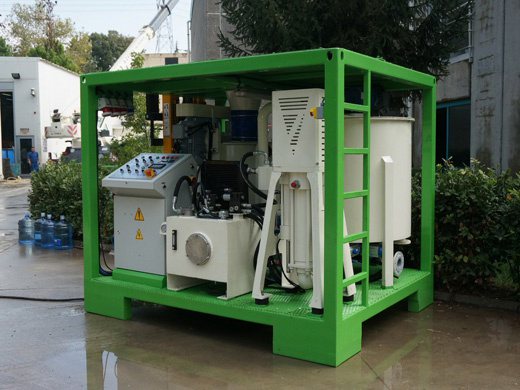

Grout Plant and Pump Unit

Presented as two different types as being RM5 and RM10. It is used drilling applications as such anchor injection, jet grouting, concreting. Because of its small format size, it is very useful at construction areas. It has rapid mixing capacity and semi-automatic control panel. In a short time mixer filling can be done.

Mixing Capacitym3/h5
Agitator Capacitylt550
Mixer Tank Capacitylt350
Max. Flow Ratelt/min80
Max. Pressurebar60
Strokemm305
Outlet Diameterinch1/2
Electric MotorkW7,5/15
Pumpcc28
Hydraulic Tanklt180
Dimensionsmm2200x1800x2000
Weightkg2250
