Casings
Casings are used to prevent falling down of the ground during bored pile construction. Casings can be manufactured in required diameters and dimensions. Main parts and types of casings as follows:
- Single Wall Casings
- Double Wall Casings

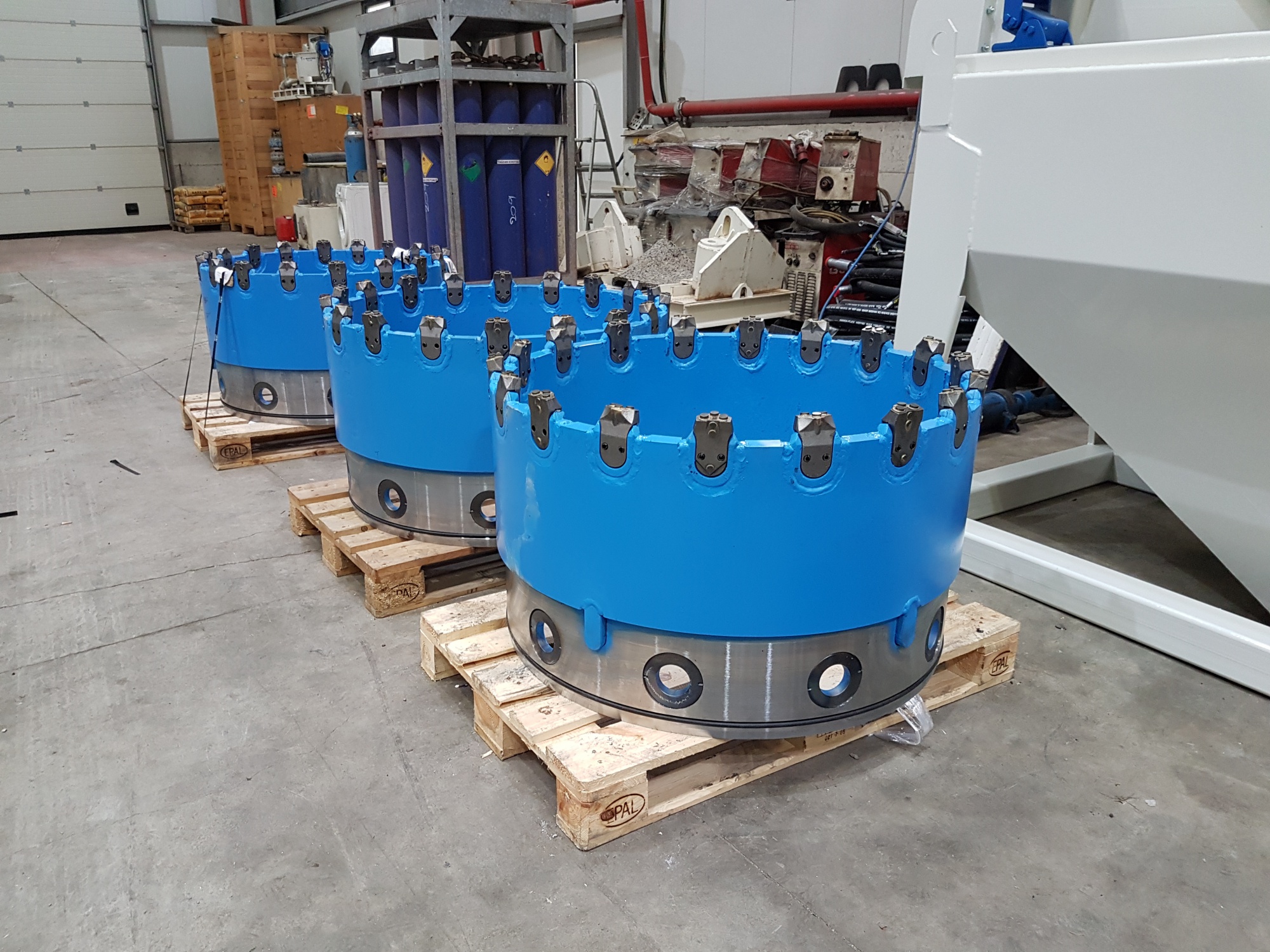

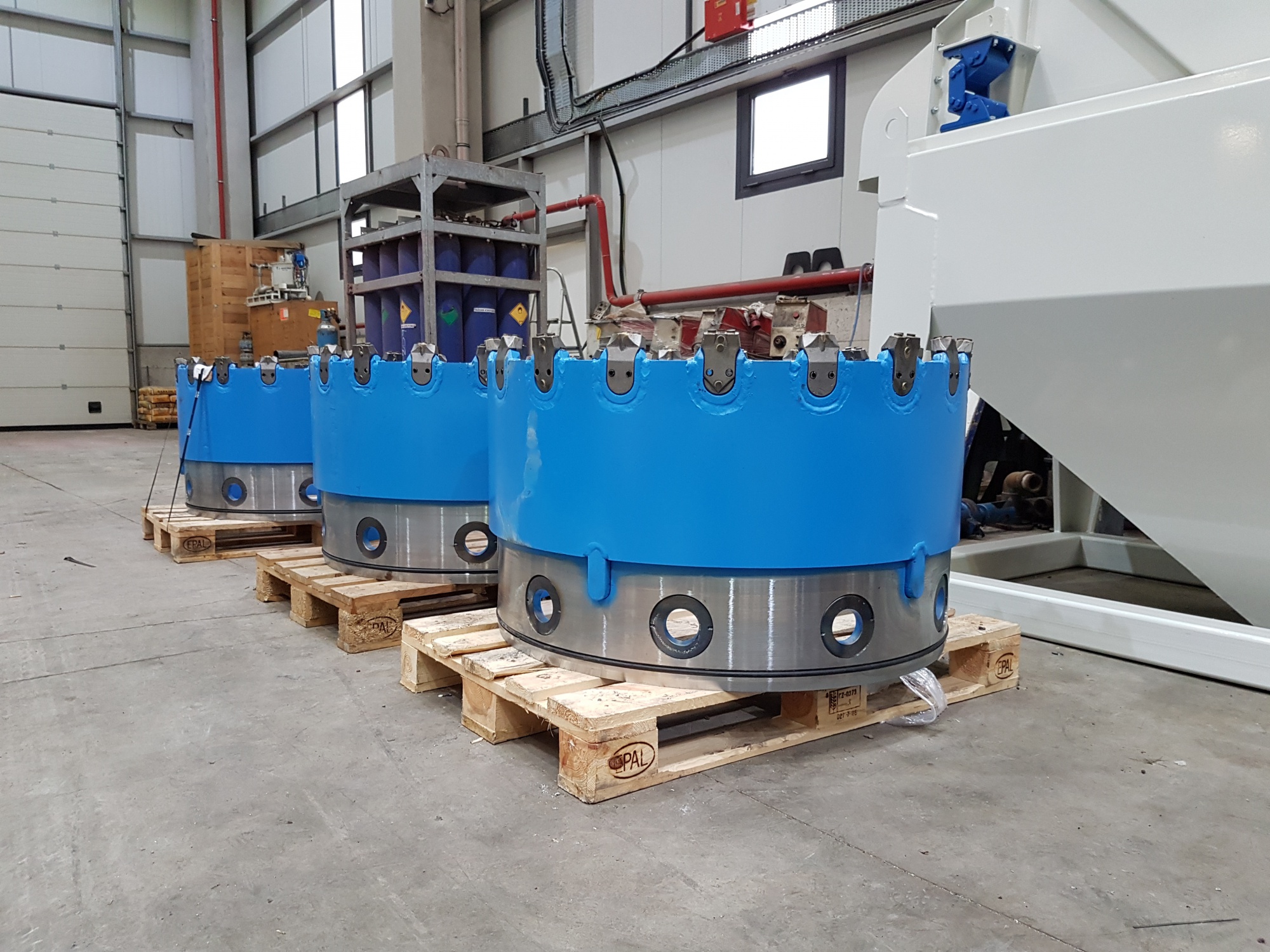

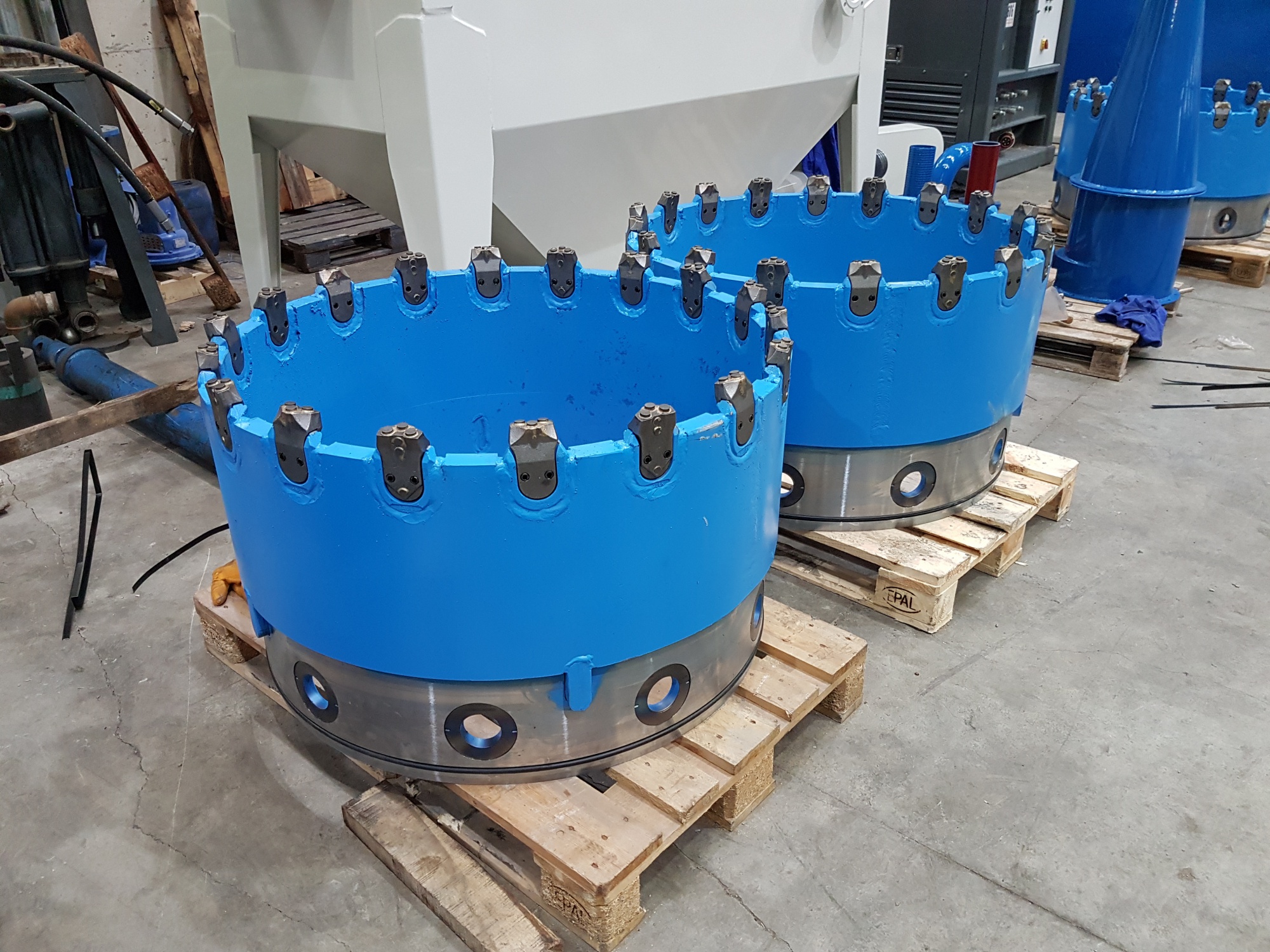

- Casing Shoe
- Casing Drive Adaptor (Twister)
| D1/D2 (mm) | Length | Weight | Teeth Qty. |
| 620/540 | 500 | 286 | 15 |
| 750/670 | 500 | 350 | 19 |
| 800/720 | 500 | 375 | 20 |
| 880/800 | 500 | 414 | 22 |
| 1000/920 | 500 | 473 | 25 |
| 1080/1000 | 500 | 513 | 27 |
| 1200/1120 | 500 | 572 | 30 |
| 1280/1200 | 500 | 611 | 32 |
| 1300/1220 | 500 | 621 | 33 |
| 1500/1400 | 750 | 1,34 | 38 |
| 1600/1500 | 750 | 1,433 | 41 |
| 1800/1700 | 750 | 1,618 | 46 |
| 2000/1880 | 750 | 2,152 | 51 |
| 2120/2000 | 750 | 2,285 | 54 |
| 2200/2080 | 750 | 2,374 | 56 |
| 2500/2380 | 750 | 2,706 | 64 |
| 3000/2880 | 750 | 3,261 | 77 |
