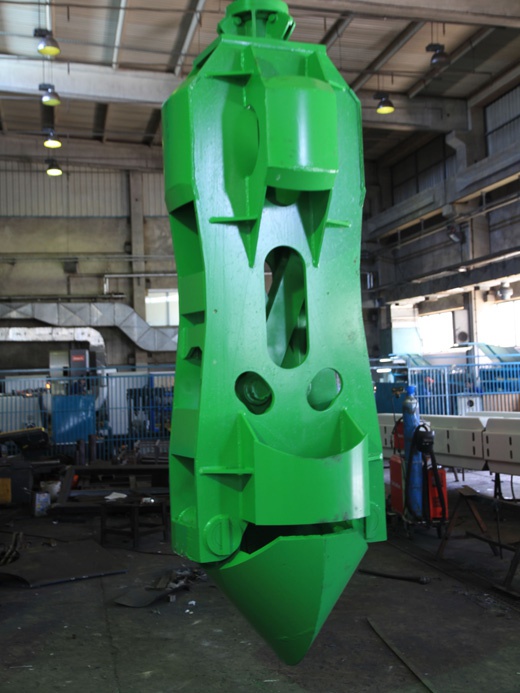

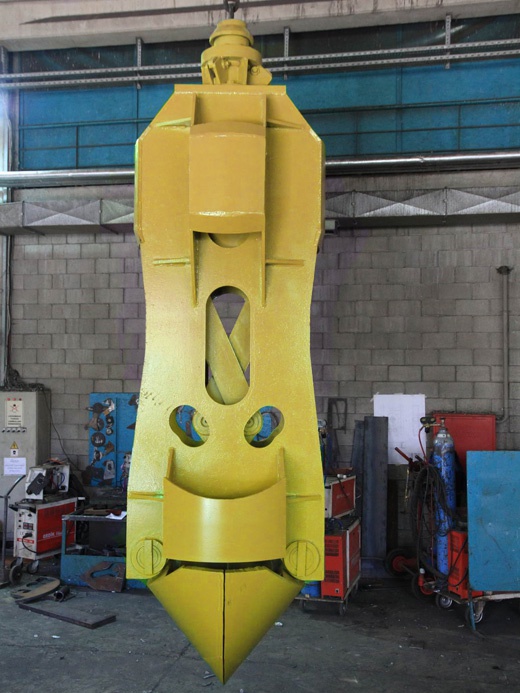

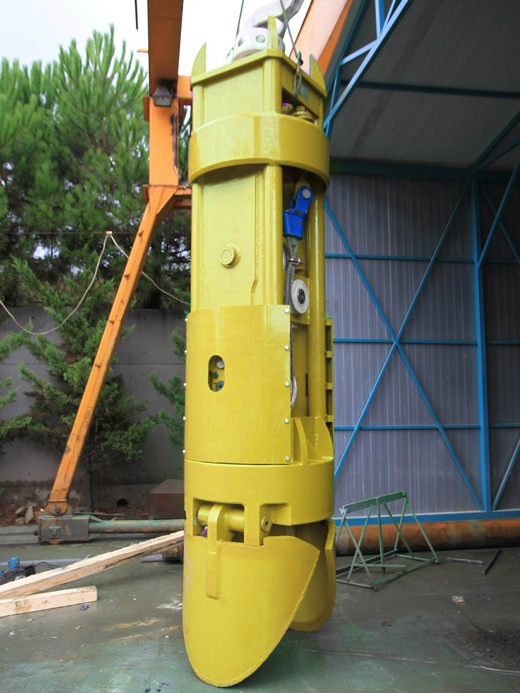

Bored Pile Grab
- Discharging of the grab jaws is rapid and easy, besides maximum capacity of grabbing.

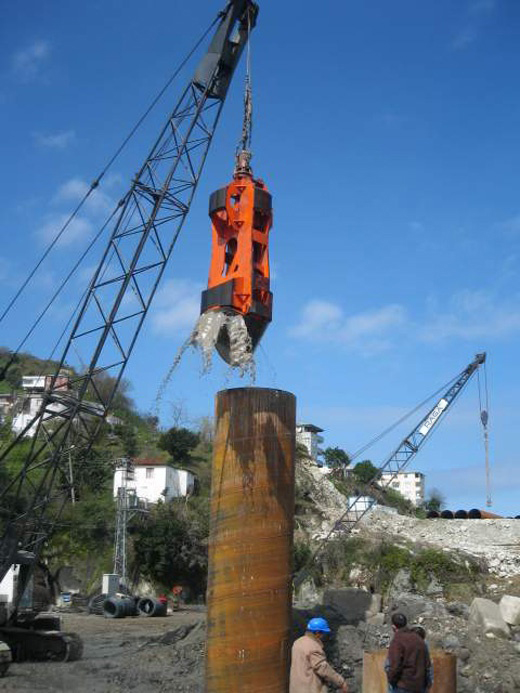

- The hammer grab is the most important tool in pile construction and it determines the drilling progress.
- The entire construction is stress relieved and extremely strong.
- Surfaces exposed to abrasion are manufactured by Hadox 500 material.
- Chassis and arms that required endurance are manufactured by Weldox 700 material.
- Guide and holders are manufactured by S 355 material.
- Presented as two different systems as follows:
- Pulley System
- X-Linked Sytem
Type | Jaws Opening (mm) | Casing Diameter (mm) | Length (mm) | Capacity (mm) | Weight (mm) |
ZKP600 | 600 | 720/640 | 3650 | 55 | 1560 |
ZKP640 | 640 | 750/670 | 3700 | 60 | 2000 |
ZKP690 | 690 | 800/720 | 3750 | 70 | 2050 |
ZKP770 | 770 | 880/800 | 3770 | 90 | 2400 |
ZKP850 | 850 | 980/900 | 3785 | 110 | 2500 |
ZKP890 | 890 | 1000/920 | 3790 | 125 | 2600 |
ZKP970 | 970 | 1180/1100 | 3800 | 150 | 3400 |
ZKP1050 | 1050 | 1180/1100 | 3850 | 200 | 3450 |
ZKP1070 | 1070 | 1180/1100 | 3900 | 250 | 3700 |
ZKP1140 | 1140 | 1250/1170 | 3985 | 300 | 3750 |
ZKP1170 | 1170 | 1300/1220 | 4000 | 310 | 3800 |
