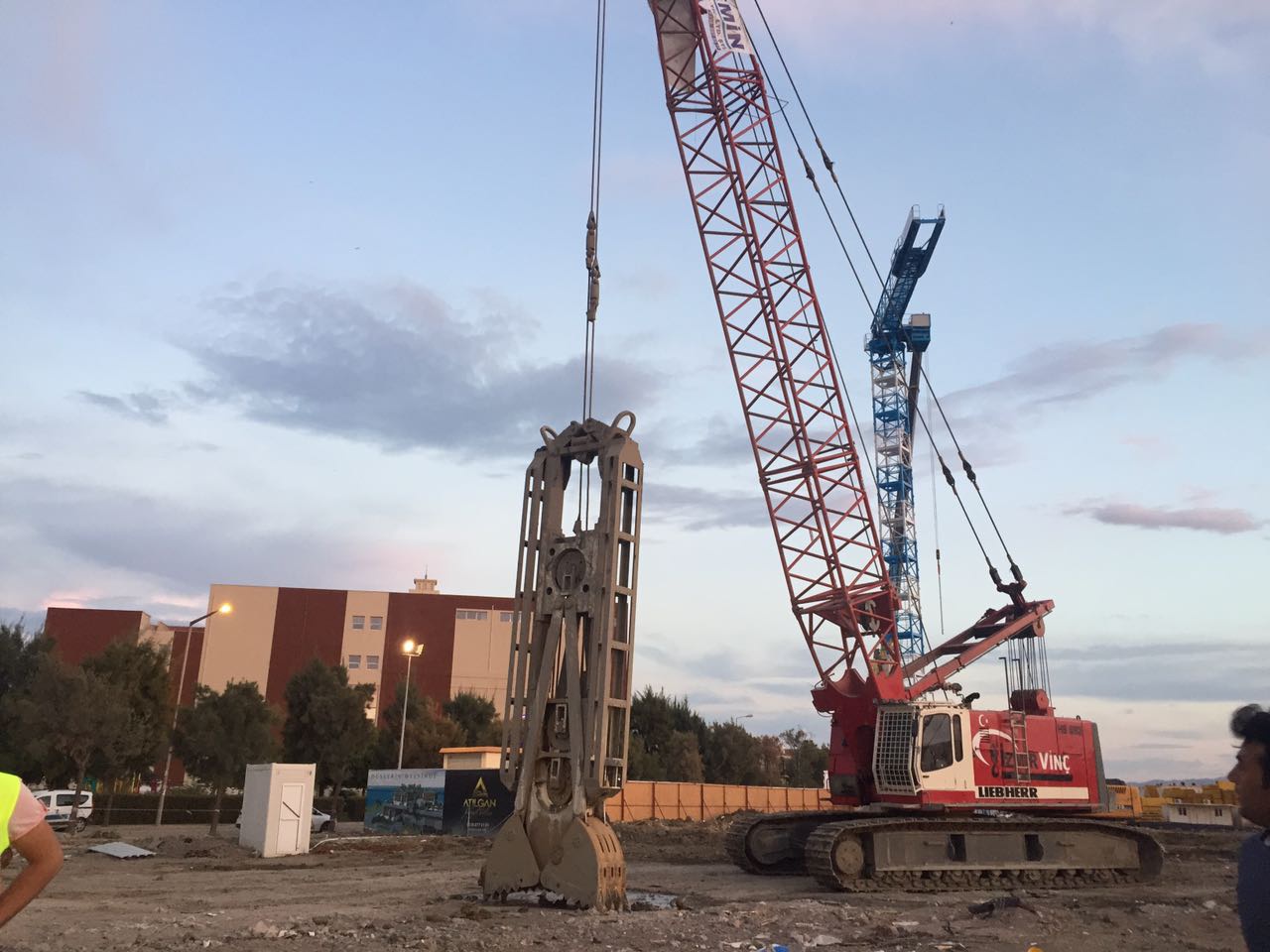

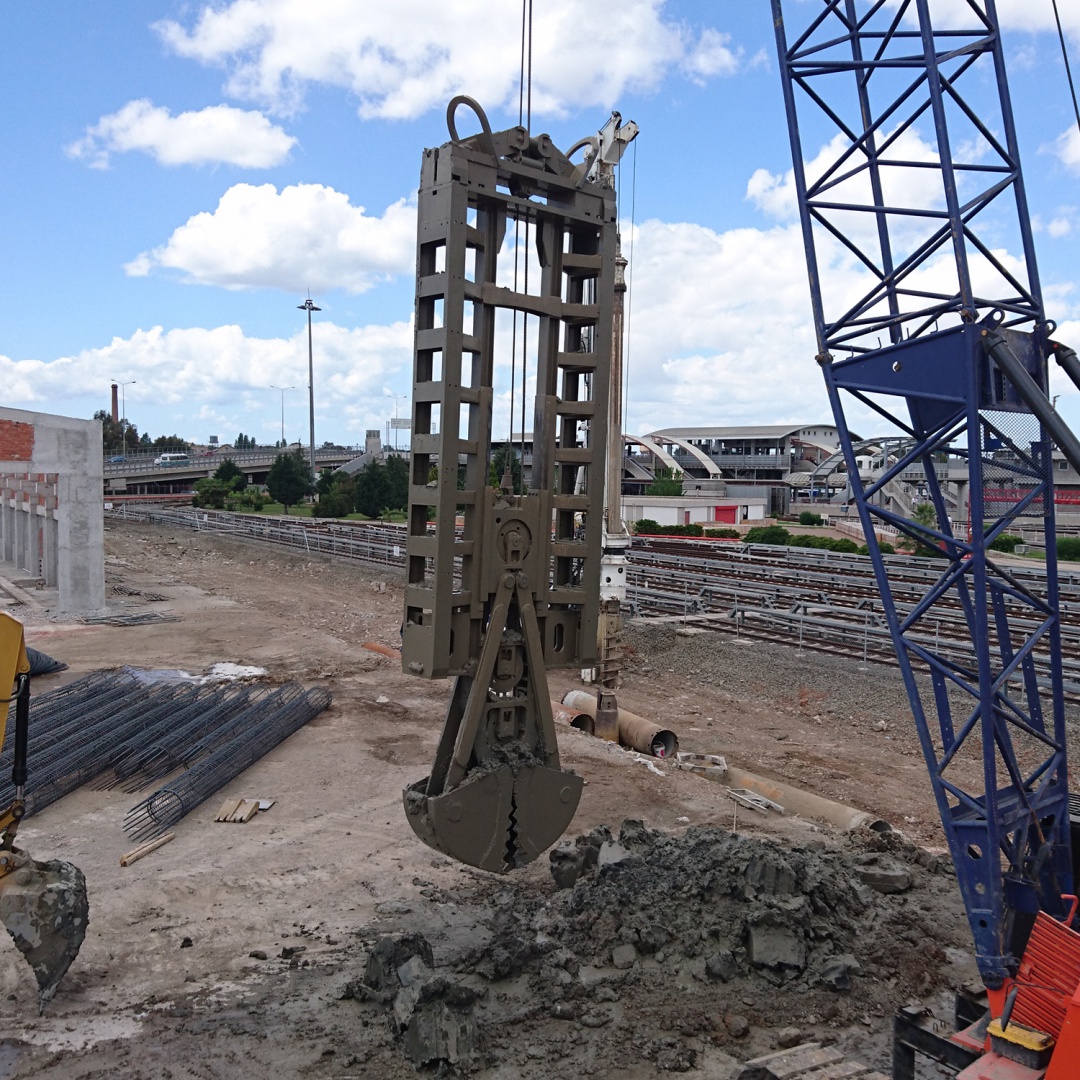

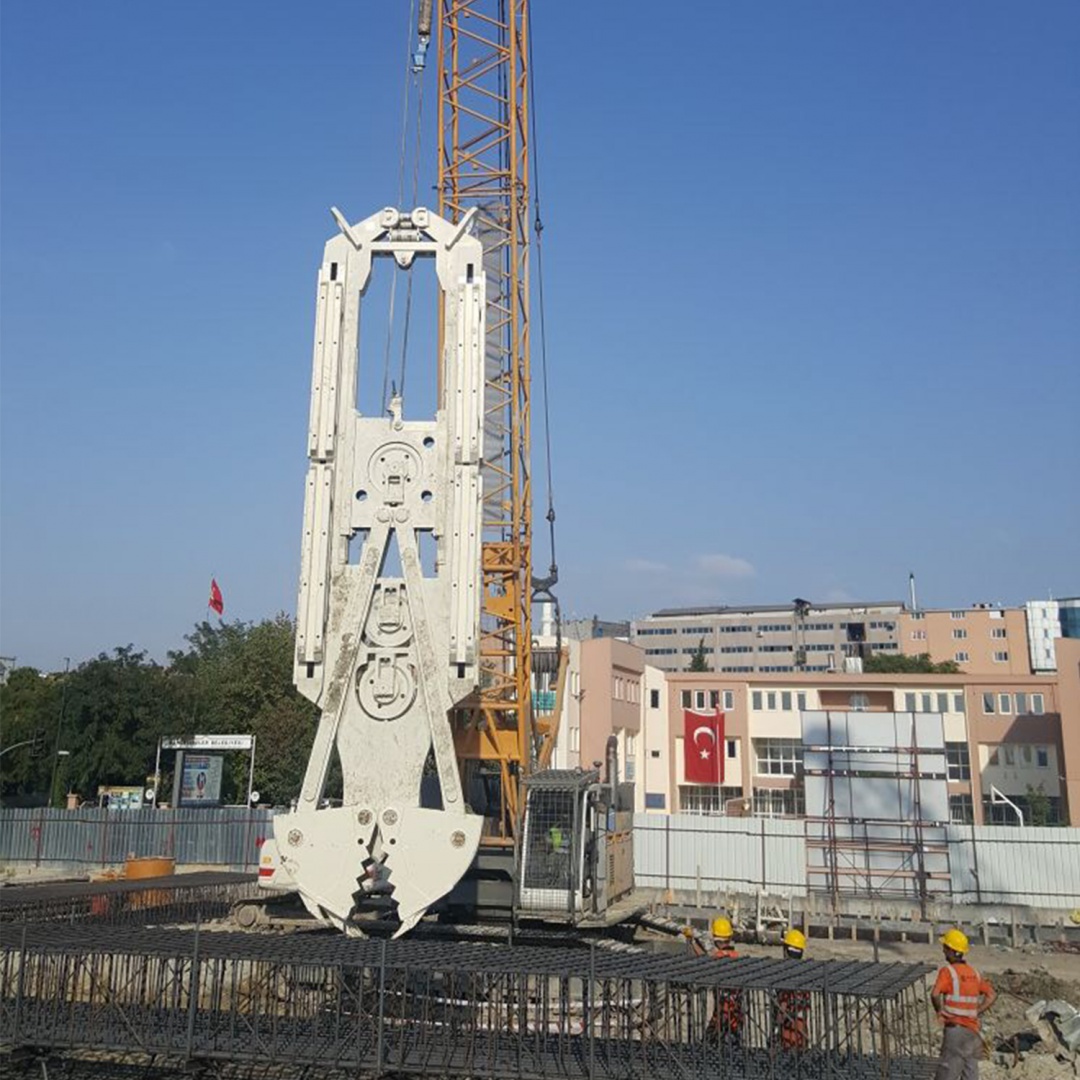

Mechanical Grab

It produced to use on diaphragm wall applications. Could be work on every ground conditions

  • Presented as two different types as being MGK and MGU.
  • Provided that the main chassis will be stable, it enables to make excavation with different sizes by replacing the jaws and guides.
  • Jaws can be selected as two different types as being flat and round.
  • All the pulleys are manufactured by maintenance free durable life-time felts and bearing systems.
  • Surfaces exposed to abrasion are manufactured by Hardox 500 material.
  • Chassis and arms that require endurance are manufactured by Weldox 700 material.
  • Guides and holders are manufactured by S 355 material.
TOTAL LENGTH100001000010000100001000010000
JAWS OPENING250025002500280028002800
JAWS WIDTH60080010006008001000
TOTAL WEIGHT - LIGHT144901581017550170501845019680
TOTAL WEIGHT - HEAVY144901818021980207202400027780
