ADVANTAGES

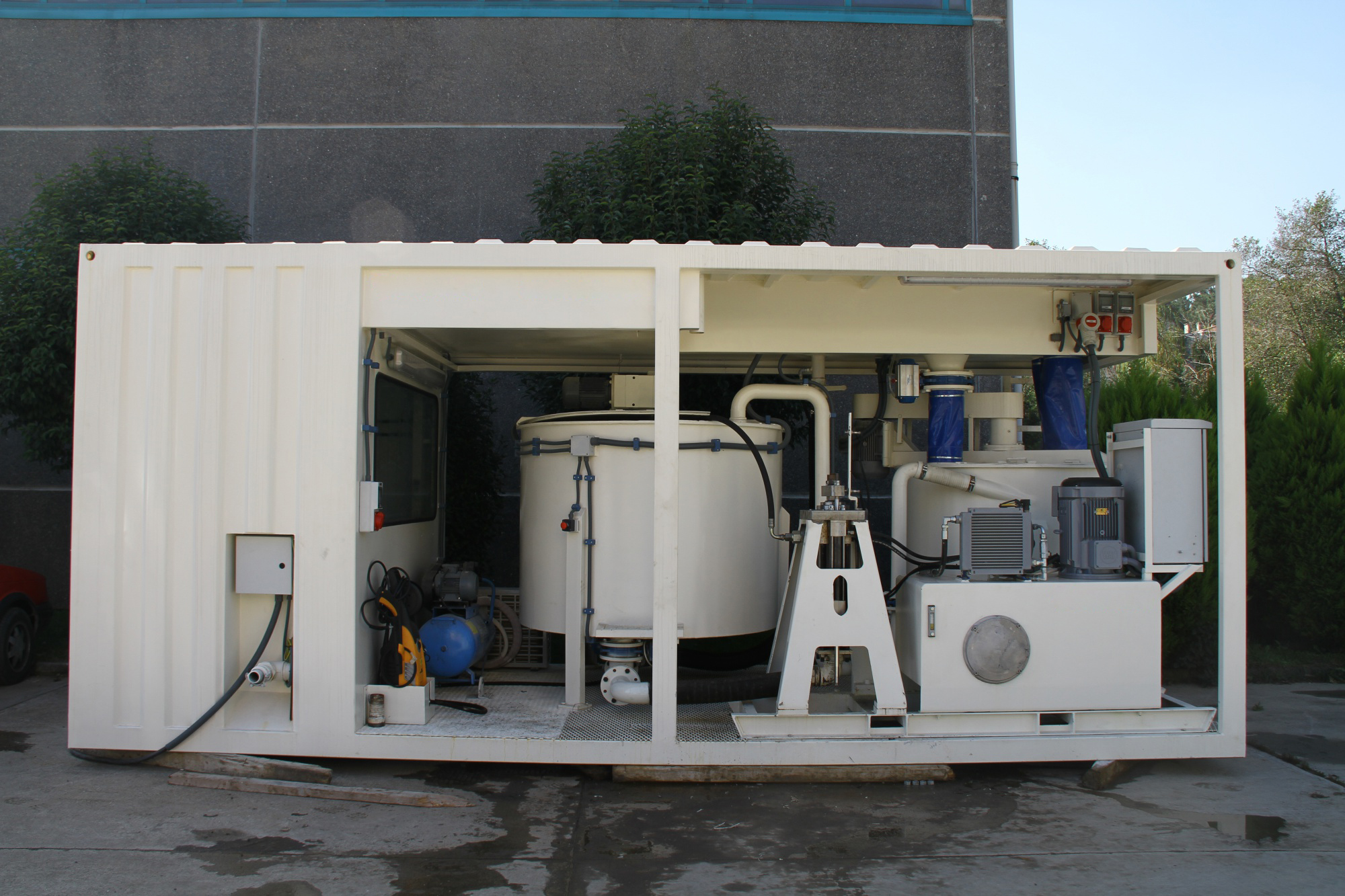

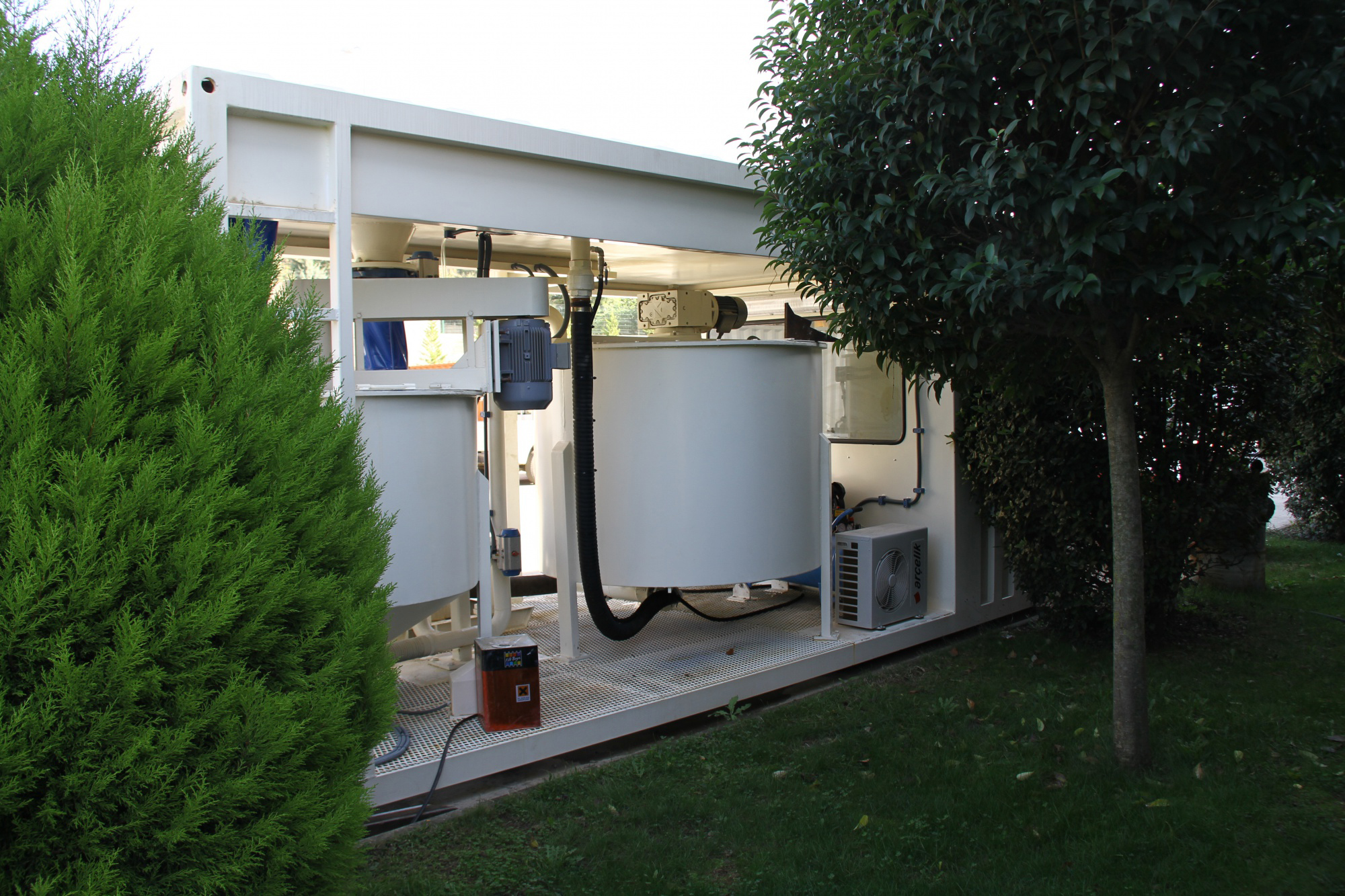

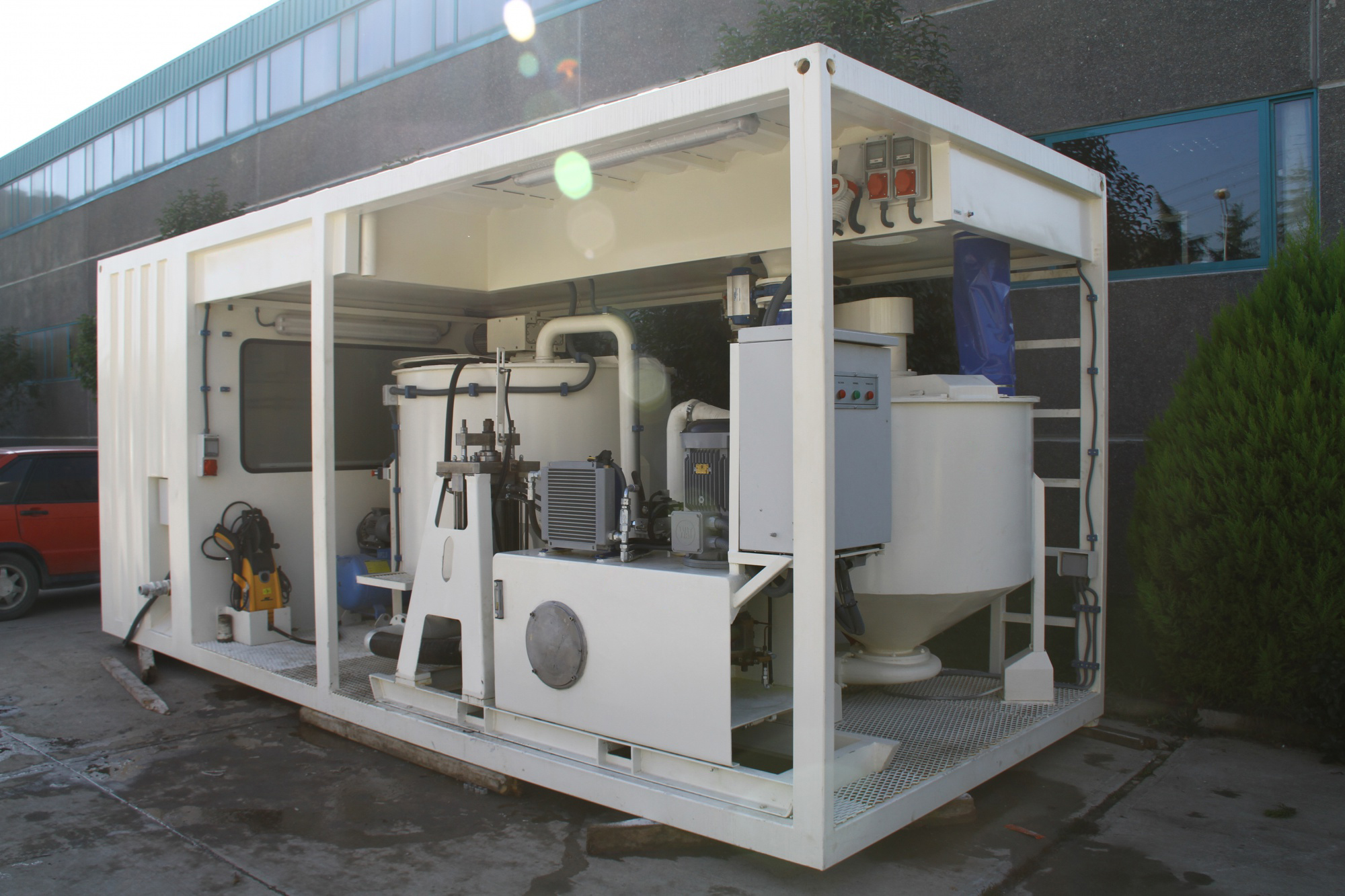

- Jet Grout Plants range includes different sizes equipment with production capability up to 30 m³/h.
- The continuous mass transfer between the two zones ensures maximum possible homogeneity of the mixture.
- Absolutely minimal sedimentation of the mixture.
- High mixing capacity due to short mixing time.
- Lowest possible use of raw materials.
- Operator cabin with full automatic control panel board.
APPLICATIONS
- Anchor injection
- Jet grouting
- Drilling
- Concreting
- Cavity filling
- Bottom injection
- Tunnel applications
- Dam applications
| Mixer Tank Capacity | m3 | 1400 |
| Agitator Tank Capacity | lt | 2750 |
| Water Tank Capacity | lt | 3000 |
| Power | kW | 40 |
| Mixing Capacity | m3/h | 20 |
| Dimensions | mm | 6000x2400x2600 |
| Weight | kg | 6000 |
